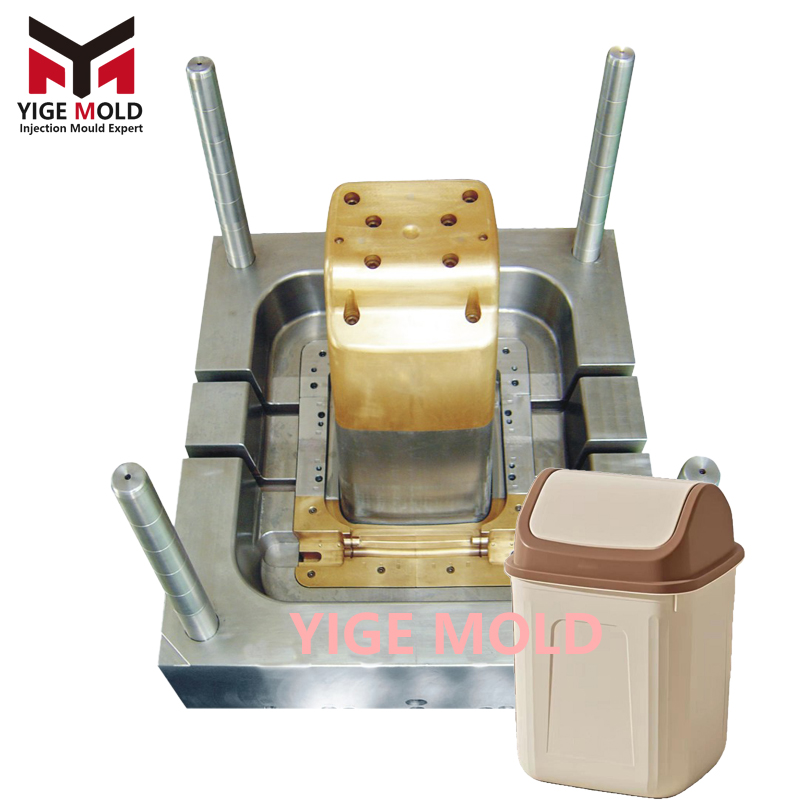

Flip Top Dustbin Mold

Flip-Top Dustbin Mold: The Precision-Engineered Guardian of Hygiene and User Experience

Within the sanitation systems of both public and private spaces, the dustbin plays a silent yet critical role. Among them, the flip-top dustbin, with its ability to isolate odors, prevent pests and dust, and offer convenient operation, has become a standard fixture from home kitchens to hospital corridors. The core component enabling this seemingly simple function—stable, smooth, and durable opening and closing—is the sophisticated flip-top dustbin mold behind it. This is not merely a tool for plastic forming; it is a complex systems engineering solution integrating ergonomics, material mechanics, and long-term durability.

I. Core Functional Deconstruction: Beyond the Simple "Lid"

The design objective of a flip-top dustbin mold extends far beyond creating a "container with a lid." It aims to engineer a predictable, repeatable interactive experience, with its core focus on absolute control over the lid's motion trajectory and sealed state.

1. Deterministic Motion: The mold must precisely form the hinge system that dictates the lid's movement. This is typically not a simple "piano hinge" but a precision structure incorporating preset torque, damping control, and limiting functions. Whether it's a "straight-line" elongated hinge or a "butterfly" dual-axis hinge, the concentricity of its pivot, the thickness and curvature of the hinge arms must all be achieved in the mold with micron-level tolerances. This ensures the lid's movement trajectory remains consistent with its initial state after tens of thousands of cycles, without deviation, jamming, or unusual noise.




2. The Art of Passive Sealing: An excellent flip-top lid achieves sealing not through forceful compression, but via precisely matched curved surfaces between the lid and the bin rim—a design of passive sealing. The mold must impart a specific angled guiding bevel to the bin's rim and form a perfectly matching "lip" on the lid's inner edge, capable of elastic deformation. As the lid closes, this lip, guided by the bevel, undergoes slight, uniform elastic deformation to create a seal. This demands extremely high-grade steel machining and polishing in the corresponding areas of the mold to ensure the molded plastic parts are dimensionally stable and smooth, achieving the delicate balance between airtightness and ease of opening.




3. Engineering the "Feel": The force required to open, the speed of opening/closing, and the sound upon closure collectively define the product's "hand-feel." The mold precisely regulates these sensory elements through:

   • Force Control: Presetting minute ribs or bumps inside the hinge to create subtle resistance changes at specific angles, providing clear tactile feedback. Alternatively, adjusting the hinge's elastic return force by precisely controlling the wall thickness distribution in the hinge area.




   • Buffering and Silence: The mold can design impact-absorbing structures inside the lid, such as micro-ribs or areas for overmolding with soft-touch materials (requiring two-shot or overmold tooling), to absorb energy upon closure for a quiet operation. For high-end products, the mold may even include precise mounting slots and clearance for independent hydraulic dampers or spring systems.







II. Structural Design and Durability Engineering: Combating Fatigue and Wear

Dustbins are high-frequency-use durable goods; the core philosophy of their mold design is full-lifecycle reliability.

1. Stress Flow Management: Dustbins endure complex stresses during movement, emptying, and stacking. Through "stress flow" guidance design, the mold incorporates scientifically arranged networks of reinforcing ribs at key areas like the body, base, and handles. These ribs are not arbitrarily added; their height, thickness, and root fillets (R-angles) are calculated to distribute concentrated loads smoothly to the main structure, like a tree's root system, preventing cracks caused by stress concentration. The mold's cooling system must ensure uniform cooling in these areas of varying thickness (e.g., where ribs meet walls) to prevent internal stresses from uneven shrinkage, which could become failure points.




2. Abrasion and Impact Resistance Design:

   • Base and Caster Mounts: The base is a high-pressure zone. Its mold design must guarantee sufficient flatness and incorporate internal radial or grid-like reinforcing structures. If casters are to be installed, the mold must form reinforced hub units with optimized depth, angle, and wall thickness to withstand the impact of full load and long-term rolling wear.




   • Rim Edge: This area has the most frequent contact with trash bags, inner bins, and the lid, making it prone to wear and tear. The mold typically forms this area as a thickened, inwardly curled "bead." This increases strength, prevents cuts, and provides a larger contact area to distribute wear.







3. Environmental Adaptation: The mold must account for product performance across temperatures (e.g., cold outdoors vs. warm kitchens). For instance, hinge brittleness increases in low temperatures. Designers might use larger transitional fillets at hinge roots or allow slightly looser tolerances to accommodate material shrinkage and property changes in the cold.




III. Mold-Making Precision and Materials Science

Functional realization ultimately relies on extreme precision in mold making and a deep understanding of material properties.

1. Precision Machining of Kinematic Pairs: The challenge of flip-top molds lies in the coordination of multiple moving components. Sliders, lifters, and rotating ejection mechanisms must work in perfect harmony to form complex features like internal undercuts and hidden hinge pins. The clearance between these moving parts is typically controlled within 0.015-0.03 mm, about one-third of a human hair's diameter. This requires machining with high-precision equipment like slow wire EDM and optical profile grinders, followed by hand-fitting to ensure smooth, chatter-free movement.




2. The Dual Mission of Surface Treatment: Mold surface treatment directly impacts product life and appearance.

   • Wear Resistance Enhancement: Processes like nitriding, chrome plating, or PVD (Physical Vapor Deposition) coating are often applied to friction-prone areas like hinge pins, slider guides, and ejector pins. This significantly increases surface hardness and wear resistance, ensuring the mold's own longevity.




   • Texture and Demolding: The outer wall often features a fine leather grain or grid pattern. This is not just aesthetic; it's functional. Textures effectively hide flow and sink marks and increase surface rigidity. The mold achieves this via texturing (etching). The depth and pattern of the texture must be calculated, as they affect plastic flow resistance and demolding force. Deeper textures require greater draft angles.







3. Targeted Material Selection: Dustbins commonly use high-toughness, impact-resistant plastics like HDPE or PP. These materials have high shrinkage rates, and production may incorporate recycled content to reduce costs. This poses specific challenges for the mold: the cooling system must be more efficient and uniform to control shrinkage; gate design must consider filling by high-viscosity melt; and mold steel should be more corrosion-resistant (e.g., S136H) to withstand potential impurities or degradation byproducts from recycled material.




IV. System Integration and Scenario Adaptation

Modern flip-top dustbin molds exemplify the trend toward systematic, scenario-specific solutions.

1. Functional Integration Platform: Molds increasingly serve as platforms integrating various accessories. For example, they can be designed to form in one piece: mounting bases for foot pedal linkage mechanisms, locating slots for inner buckets, slots for deodorizer cartridges, or even battery compartment covers (for sensor-activated models). This requires forward-thinking, modular design from the outset, allowing for future feature additions.




2. Adaptation to Diverse Scenarios:

   • Household Use: Prioritizes quiet operation, aesthetics, and easy cleaning. The mold focuses on gentle lid closure and sealing, with high-gloss or matte finishes for appearance.




   • Medical/Lab Use: Emphasizes sealing, durability, and chemical resistance. The mold may involve more complex sealing structures and use chemically resistant plastics, demanding higher corrosion resistance from the mold steel as well.




   • Outdoor Public Use: Prioritizes UV resistance, impact resistance, and vandal resistance. The mold reinforces key structures and may include features like anti-theft lock holes.







Conclusion: The Silent Manufacturer of Interactive Interfaces

The flip-top dustbin mold is the unseen engineer of the industrial age, refining and standardizing the mundane act of discarding waste. Through its steel framework, it imbues plastic with the regularity of life-like motion. It never touches the end-user, yet it defines the force, sound, and feedback of every lid open-close cycle; it does not handle the trash, but constructs the first reliable barrier for its containment and management.

From millimeter-level hinge clearance control to fatigue-resistant design for tens of thousands of cycles, the flip-top dustbin mold embodies a relentless pursuit of certainty. Under its precise constraints, mass-produced plastic products shed labels of cheapness and unreliability, becoming trustworthy, unconscious partners in our daily lives. It stands as a testament that even the most ordinary, fundamental functions are often underpinned by a formidable edifice of precise, rigorous manufacturing engineering. This is the silent path where industrial design beauty moves from blueprint to reality, ultimately weaving itself into the daily fabric of millions of households.
