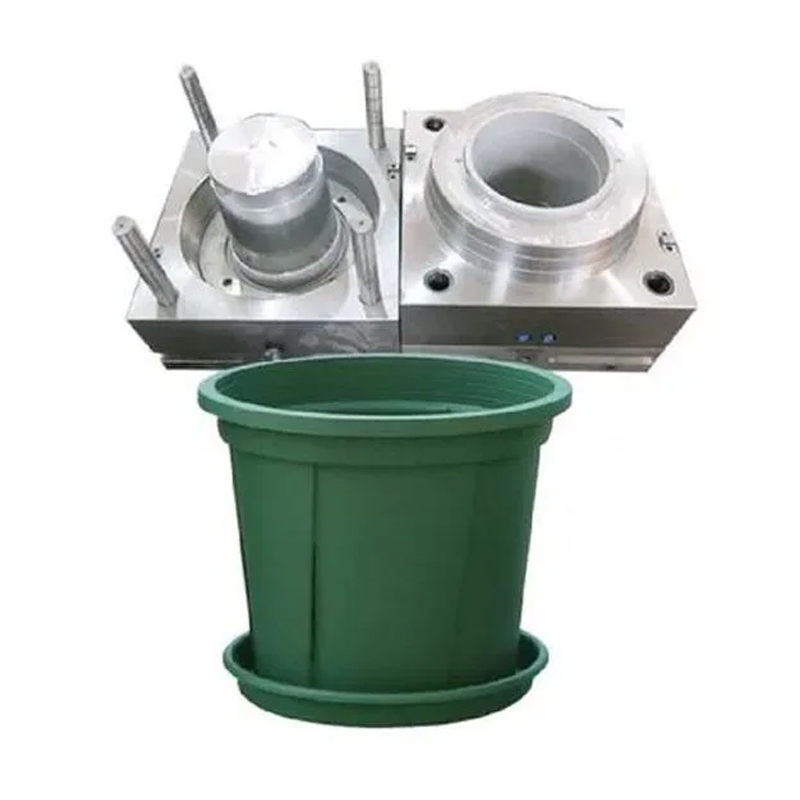

Injection Mold for Flower Pots: An In-Depth Introduction
In today's flourishing horticulture industry, the flower pot has evolved from a simple functional container into a composite product that integrates practical utility, landscape aesthetics, environmental principles, and smart gardening concepts. The physical origin of all these innovations in form and function lies in a core piece of industrial equipment: the Injection Mold for Flower Pots. More than just the "mother machine" enabling the efficient, economical, and high-quality mass production of plastic pots, it is a precision bridge connecting materials science, botanical needs, and large-scale manufacturing processes.
I. The Industry Cornerstone: The Unique Nature and Core Value of Flower Pot Molds
Compared to molds for general-purpose plastic products, injection molds for flower pots possess distinct industry characteristics dictated by the end-use scenario of the product:
Dual Bearer of Function and Aesthetics:
Structural Integrity: Must ensure the pot has sufficient impact resistance, UV stability (especially for outdoor use), and excellent drainage and aeration (design of bottom holes, sidewall ventilation structures).
Aesthetic Appeal: The mold directly determines the pot's surface texture (imitating terracotta, stone, rattan, wood grain, or a smooth high-gloss finish), color uniformity (demanding high pigment dispersion), and shape complexity (from classic rounds to modern geometric and irregular forms).
The "Hidden" Botanical Requirements:
Root Health Orientation: Excellent mold design considers the principle of "air root pruning." Sidewall grooves or protrusions are not merely decorative; they guide root growth and prevent root circling.
Drainage and Moisture Balance: The precision of the mold's design for drainage hole location, quantity, size, and the fit of accompanying removable plugs directly impacts the soil's wet-dry cycle, crucial for plant survival.
The Pursuit of Ultimate Cost Efficiency:
As a typical product with "low unit value and high market demand," flower pots impose near-critical demands on production efficiency (cycle time) and raw material waste control. The quality of the mold directly defines a manufacturer's core competitiveness.
II. Design and Manufacturing: The Art of Translating Blueprints into Precision Steel
The birth of a high-performance flower pot injection mold is the perfect execution of a systems engineering process.
Phase 1: In-Depth Requirement Analysis and Forward-Looking Design
This is the starting point of value creation. Designers must think beyond "making a container" and consider the Total Cost of Ownership (TCO):
Material Compatibility: Primary materials are Polypropylene (PP) and Recycled Polypropylene (rPP) for their low cost and weatherability. High-end pots use ASA/ABS for enhanced UV resistance and gloss. Biodegradable pots use PLA/PBAT blends, whose different rheological and crystallization properties pose new challenges for mold cooling systems.
Ejection Strategy Optimization: A core challenge is the draft angle design, as pots are often wider in the middle than at the top. Too little draft causes ejection issues and part scratching; too much affects aesthetics and wastes material. Advanced techniques like "variable draft angles" and "air-assisted ejection" are used to balance these needs.
Gating System Revolution: Modern flower pot molds almost exclusively use Hot Runner Systems, often multi-gated with valve gate sequence control. This saves material, shortens cycles, and ensures uniform filling for large pots (like nursery containers and planter boxes), avoiding weak weld lines that are potential failure points.
The "Deciding Factor": The Cooling System: Cooling time constitutes over 60% of the total cycle. Traditional drilled cooling channels cool complex pot geometries unevenly. The industry forefront now utilizes 3D-printed Conformal Cooling Channels, which follow the pot's curved surfaces exactly, enabling fast, uniform cooling. This can boost production efficiency by over 30% and drastically reduce internal stress and warpage caused by temperature differentials.
Movable Mechanisms and Functional Integration:
Large Lifters/Internal Cores: Used to form internal ribs, slots (for connecting self-watering systems), and complex concave features.
Unscrewing Mechanisms: For manufacturing pots with threaded connections for stacking or hanging.
"Waterfall" Venting Systems: The deep cavities and large volume of pot molds make venting critical. Precisely designed vent channels, sometimes coupled with vacuum venting systems, are essential to prevent air traps, burn marks, and ensure complete, dense filling.
Phase 2: Ultra-Precision Manufacturing and Systematic Validation
Following validation via Molding Simulation (CAE), the process enters the world of micron-level manufacturing:
Achieving High Hardness and Toughness: Core and cavity inserts are made from pre-hardened tool steels (e.g., P20, 718) or undergo quenching and nitriding to withstand the abrasion and pressure of molten plastic over hundreds of thousands, even millions, of cycles.
The Art of Texture: The natural material finishes on pot surfaces are achieved through Chemical Etching (Texturing) or Laser Engraving on the mold surfaces. The depth, uniformity, and artistry of the texture directly determine the pot's "look" and added value.
The Craftsmanship of Polishing and Assembly: Runner systems and cavity surfaces require mirror polishing for part gloss and smooth ejection. All moving components (slides, lifters) are meticulously fitted to ensure smooth, jam-free operation.
Trial Run and Optimization: Once mounted on a machine, a scientific Design of Experiments (DOE) is conducted to fine-tune parameters like pressure, speed, temperature, and time. The goal is to find the optimal balance between quality, efficiency, and cost—establishing the "process constitution" for mass production and validating the mold itself.
III. Core Technological Frontiers: Engines Driving Industry Evolution
Green Two-Component (2K) Molding: Enables the overmolding of a rigid pot body with a soft seal/handle or the co-injection of virgin and recycled material in a sandwich structure. The mold structure is exceptionally complex, demanding precise sequence control and strong bonding, making it key for enhanced functionality and eco-value.
Large-Scale Thin-Wall Molding: To reduce weight and cost, large planter boxes are trending toward thinner walls. This presents an extreme challenge to a mold's filling capability, cooling uniformity, and ejection balance, requiring synergy between high-speed, high-pressure injection and a high-rigidity mold.
In-Mold Decoration/Assembly (IMD/IMA): Inserts like labels, sensors (for smart pots), or decorative films are placed into the mold and formed into the part in a single shot, reducing secondary operations and enabling smart features and customization.
Mold Technology for Bio-Based Materials: To accommodate materials like PLA, which have narrow processing windows and are more brittle, molds require specific designs featuring larger runners, gentler cooling, and high-gloss surfaces.
IV. Future Outlook: When Flower Pot Molds Meet New Demands
Integration of Smart Features and IoT: Future molds will directly form precise features, slots, and channels to integrate soil moisture sensors, light sensors, and nutrient monitoring modules, serving as the hardware foundation for the "Smart Garden."
High Customization and Rapid Response: Leveraging modular mold design and 3D-printed conformal cooling, manufacturers can rapidly (within weeks) develop molds for small batches of customized, high-end pots, meeting niche market demands like landscape architecture and branded merchandise.
Enabler of the Circular Economy Loop: To accommodate higher proportions of Post-Consumer Recycled (PCR) plastics from diverse sources, molds will need greater corrosion resistance and more forgiving processing windows to handle recycled materials with more contaminants and inconsistent flow, becoming a critical link in the plastics circular economy.
Conclusion
The injection mold for flower pots, an industrial masterpiece hidden behind lush greenery, is a perfect fusion of rational precision and natural aesthetics. It is not merely an assembly of cold steel but a deeply engineered response to plant growth needs, evolving consumer tastes, and industry sustainability trends. Each time we use a flower pot that drains well, is durable, and aesthetically pleasing, an intricate flower pot injection mold is at work behind the scenes, shaping our green living spaces in a millisecond-precise rhythm, and solidifying the manufacturing foundation of the entire horticulture industry. In the journey from "Made in China" to "Innovated in China," the evolution of the flower pot mold is a microcosm—a vivid and brilliant snapshot of that progress.
