Square Waste Container Mold

Engineering Design and Manufacturing Analysis of Square Waste Container Molds

1. Introduction

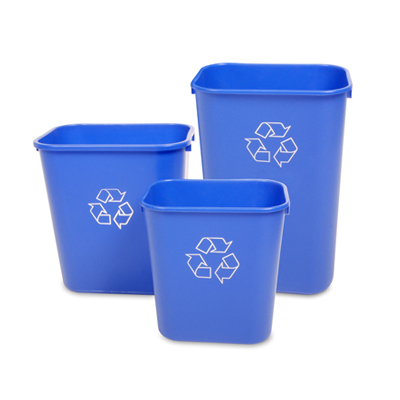

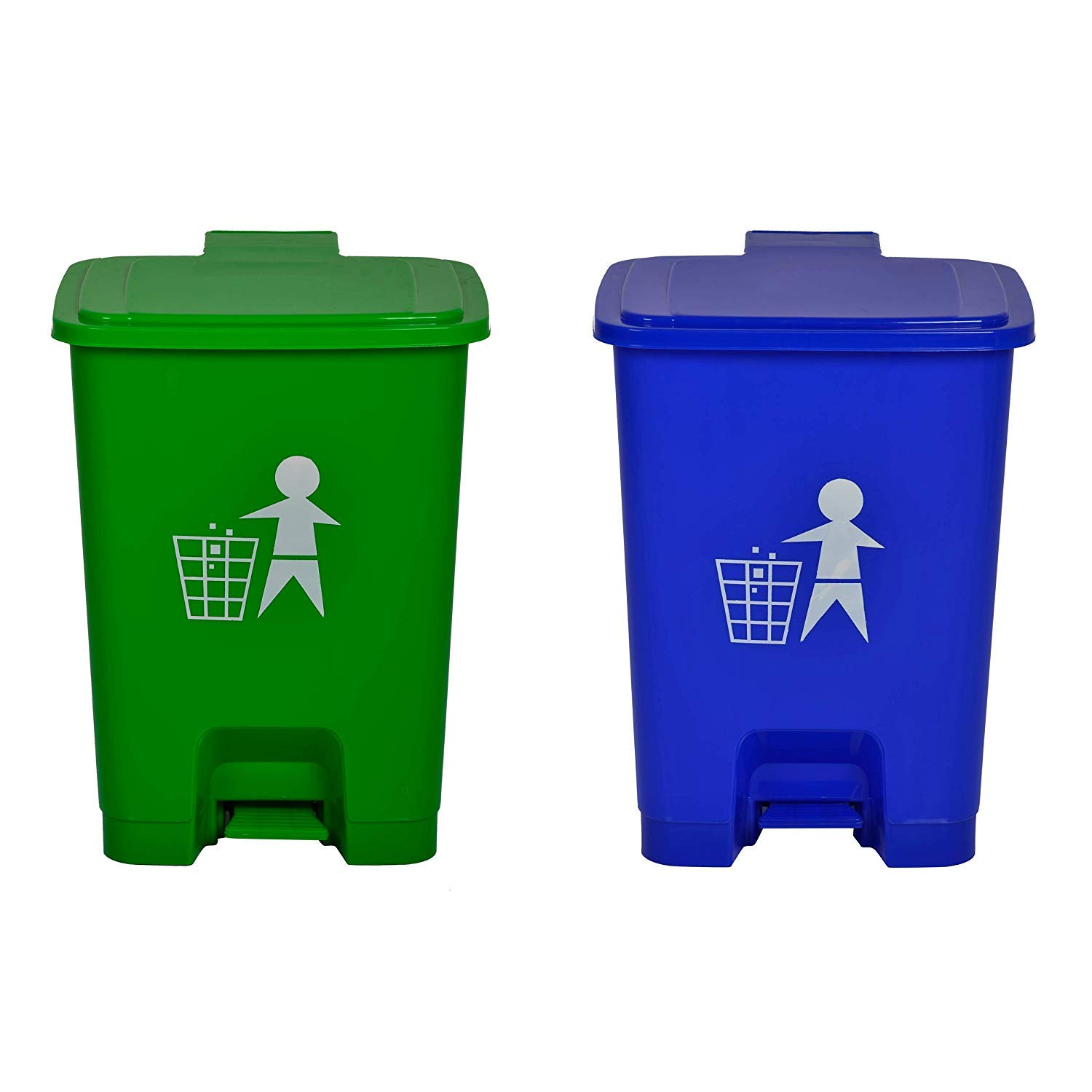

In the modern framework of urban sanitation systems and industrial waste management, square waste containers (also known as square waste bins) have become indispensable infrastructure due to their high space utilization, convenient stacking for transportation, and ease of standardization. Compared to round containers, square structures significantly reduce void space during storage and logistics, thereby drastically cutting transportation costs. However, from the perspective of mold design and injection molding processes, square containers present more challenges than round ones.

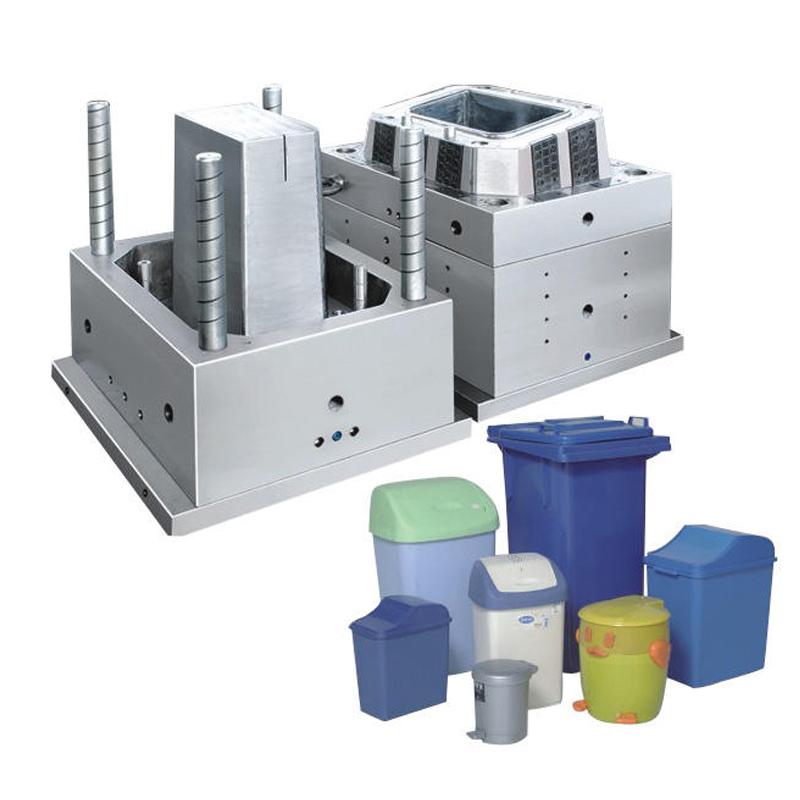

Square waste container molds belong to the category of typical large-scale deep-cavity injection molds. Their design process involves complex rheological analysis, precise mechanical structural layout, and strict cooling control. This article delves into the core design concepts, structural classifications, key technical challenges, and process optimization strategies of square waste container molds, aiming to provide an in-depth technical review based on engineering practice for mold engineers.

2. Mold Structure System and Classification

The structural design of square waste container molds is not one-size-fits-all but is customized based on product capacity (ranging from 10L household bins to 1100L industrial挂车 bins), material requirements, and appearance standards.

• Selection of Two-Plate vs. Three-Plate MoldsFor industrial bins with general appearance requirements and single-side gating, a two-plate mold structure is often used. This structure is simple and low-cost to maintain but generates significant runner scrap. For high-end household or commercial bins requiring high appearance quality and multi-point gating to ensure uniform wall thickness, a three-plate mold (fine water gate) or hot runner system is typically adopted. Although the hot runner system has a higher initial investment, it enables production with no runner scrap, shortens the molding cycle, and effectively reduces injection pressure and product internal stress, making it the mainstream choice for high-end square waste container molds.

• Venting System DesignSquare waste containers usually have deep cavities (especially large industrial bins of 660L or 1100L), and their bottoms often feature reinforcing ribs and wheel mount structures. During high-speed injection, if the air in the cavity cannot be exhausted in time, it will be compressed to generate high temperatures, leading to defects such as burning, short shots, or low-strength weld lines. Therefore, mold design must incorporate precision venting grooves at the parting surface, ejector pin holes, and slider fits. For deep cavity bottoms, utilizing insert clearance venting or adding breathable steel inserts are common solutions.

• Ejection and Demolding MechanismsDue to the flat inner walls of square bins and the lack of radial shrinkage elasticity found in round barrels, demolding resistance is high. Molds typically employ a large-area stripper plate or an array of ejector pins for demolding. To prevent product deformation or stress whitening during ejection, the ejection system must ensure uniform force distribution. For structures with internal undercuts (such as bottom wheel axle holes), lifter mechanisms must be designed to perform side-core pulling actions simultaneously with mold opening.

3. Key Component Design and Technical Challenges

The manufacturing difficulty of square waste container molds is concentrated in the depth-to-width ratio of the cavity, cooling efficiency, and clamping precision.

• Rigidity Design of Core and CavityLarge square waste container molds withstand extremely high melt pressure (typically 80-120 MPa) during injection. If the wall thickness design of the core or cavity is insufficient, elastic deformation may occur, leading to uneven product wall thickness or even flash. According to latest industry standards, for large molds above 660L, the thickness of the cavity bottom needs to be significantly increased (e.g., reaching over 400mm), and Finite Element Analysis (FEA) must be used to verify deformation under high pressure to ensure mold rigidity.

• Conformal Cooling TechnologyThe deep cavity structure of square bins makes it difficult for traditional straight water hole cooling to cover the core center area, easily leading to uneven cooling and product warpage (such as uneven bin rims). To solve this, modern mold design is increasingly introducing conformal cooling technology. By using 3D printed metal inserts or spiral baffle water channels, cooling channels can conform to the cavity surface, greatly improving heat exchange efficiency, controlling the water temperature difference within 5°C, thereby significantly shortening the molding cycle and improving product dimensional stability.

• Guiding and Positioning SystemsTo ensure precise alignment of the moving and fixed molds during high-speed opening and closing, and to prevent "crash" collisions between core and cavity, large square waste container molds typically adopt multi-level guiding systems. In addition to standard guide pillars and bushings, conical positioning (tiger mouths) or side locks are required at the parting surface. Especially for long square bins, the mold guide pillar diameter is usually large (e.g., over 100mm) and adopts a two-stage structure to ensure rigidity and precision during clamping.

4. Material Selection and Surface Treatment

The choice of mold material is directly related to mold life and product appearance.

• Steel SelectionFor ordinary industrial bins, P20 or 718H pre-hardened steel is often selected; these materials have good machinability and moderate polishing performance, meeting general production needs. For medical or food-grade bins requiring high gloss or corrosion resistance, advanced stainless steels like S136 or NAK80 are needed. Moving core inserts sometimes use Beryllium Copper (e.g., TBe1.7) to utilize its excellent thermal conductivity to accelerate cooling in thick-walled bottom areas.

• Surface TreatmentTo extend mold life and improve demolding performance, molded parts usually require surface treatment. Nitriding (such as gas or ion nitriding) can increase surface hardness to over HV1000, significantly improving wear and corrosion resistance. Additionally, to achieve specific product appearances (like leather grain or matte finishes), the mold cavity requires chemical texturing, which demands the steel to have a uniform microstructure.

5. Optimization of Injection Molding Process Parameters

With precision molds, reasonable injection molding processes are also required.

• Injection Speed and PressureStress concentration easily occurs at the corners of square bins, making the control of injection speed crucial. Multi-stage injection is typically used: high speed when melt passes through the gate and runner, reduced speed when filling corners and deep cavity bottoms to reduce shear heat, and finally low pressure and low speed for holding to eliminate sink marks.

• Holding Pressure and CoolingSince the bottom of square bins is usually thicker (for wheel installation or weighting), the holding pressure time must be set long enough to prevent vacuum voids or dents caused by shrinkage. Meanwhile, mold temperature uniformity directly affects product warpage. It is generally recommended to use a mold temperature controller to keep the mold temperature between 40°C-60°C and minimize the temperature difference between moving and fixed molds.

6. Common Defects and Countermeasures

• Warpage and Deformation: This is the most common issue with square bins. The main cause is uneven cooling or orientation stress. Countermeasures include optimizing water channel design, adjusting injection location to reduce molecular orientation, and extending cooling time.

• Weld Lines: Easily generated during multi-gate injection. Countermeasures include increasing mold temperature, increasing injection speed, or adding cold slug wells and venting grooves where weld lines occur.

• Flash: Usually occurs at the parting surface or sliders. Causes may include insufficient clamping force, excessive injection pressure, or mold wear. Countermeasures involve checking mold fit surfaces, adjusting process parameters, or increasing mold rigidity.

7. Conclusion

The manufacturing of square waste container molds is a systems engineering project integrating structural mechanics, thermodynamics, and precision machining. From early simple steel molds to modern precision molds utilizing conformal cooling, hot runner technology, and high-hardness steels, the technical content is constantly increasing. For mold manufacturers, deeply understanding material properties, optimizing mold structure design, and strictly controlling processing technology are key to producing high-quality, long-life square waste container molds. With the increase in environmental requirements, future mold design will focus more on lightweighting and energy saving to adapt to the global trend of green manufacturing.
