Introduction to Plastic Basin Moulds

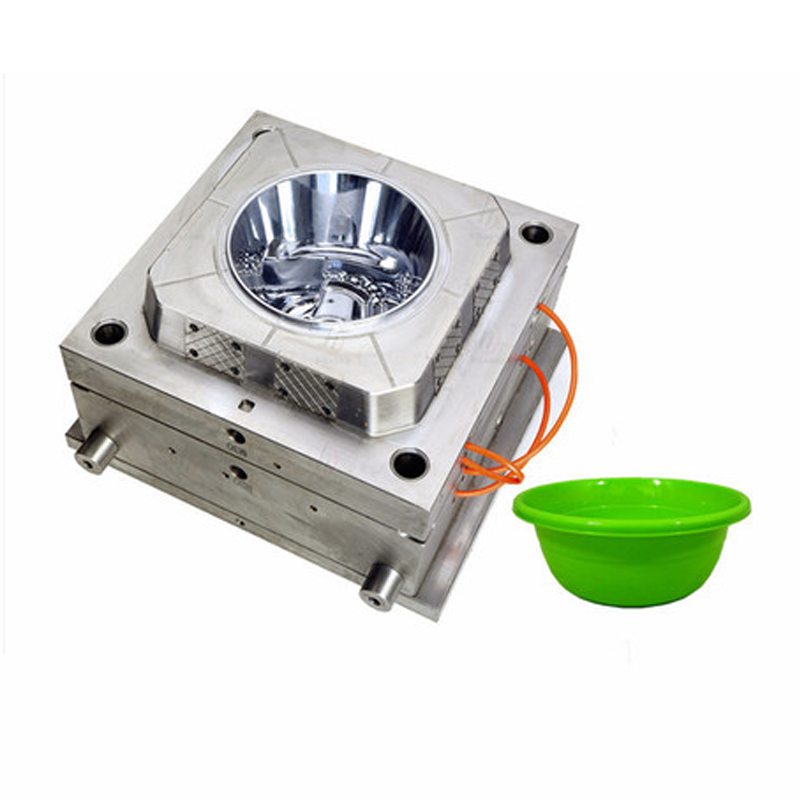

Plastic basin moulds are specialised injection moulding tools used for the high-volume, cost-effective production of common household plastic basins (for face washing, laundry, and general cleaning). Characterised by relatively simple structures, high cost sensitivity, and massive demand, the design of these moulds is highly optimised to maximise production efficiency and minimise mould cost while ensuring functionality and quality.

1. Primary Process: Injection Moulding

Plastic basins are almost exclusively produced via injection moulding. The mould is mounted on an injection moulding machine, where molten plastic material (primarily Polypropylene PP or Polyethylene PE due to their low cost and good toughness) is injected into the cavity, cooled, and then ejected as a finished part.

2. Key Mould Structural Features

1. Dominant Structure: Two-Plate Mould

   • The vast majority of basin moulds employ the classic, economical two-plate structure. With a single parting line, it is simple, reliable, and easy to maintain.







2. Cavity Layout: Multi-Cavity Design

   • Given the moderate single-part size but high demand, moulds commonly feature a multi-cavity layout (e.g., 1x2, 1x4, 1x6). This dramatically increases output per cycle, reducing per-unit cost.







3. Gating System: Focus on Efficiency & Balance

   • Edge gates or fan gates are typically used, feeding from the basin's rim for easy trimming.




   • Runner system balance is critical in multi-cavity moulds to ensure simultaneous and uniform filling of all cavities for product consistency.







4. Cooling System: The Key to Efficiency

   • The basin's wide, thin-walled geometry makes cooling time a primary driver of the cycle time. Dense and balanced cooling channels are designed within the mould to remove heat rapidly, shorten cooling time, and boost production rates.







5. Ejection System: Stable & Reliable

   • The ejection mechanism usually consists of evenly distributed ejector pins on the bottom and side walls. For large, flat bottom areas, an ejector plate (block) may be used to prevent part distortion or piercing.




   • Ejector pins are also strategically placed under the rim "flange" or ribs to ensure smooth demoulding.







3. Key Product Design Features (Achieved via the Mould)

1. Draft Angles: Sufficient draft angles (typically 1°-3°) are essential on both inner and outer sidewalls to ensure fast ejection and prevent sticking or drag marks.




2. Ribs & Bottom Design:

   • Bottom Ribs: Increase load-bearing capacity, resist deformation, and help distribute ejection force.




   • Anti-Slip Ring: A raised ring on the external bottom, created by a groove in the mould core, prevents sliding during use.







3. Rolled Rim (Flange): The top edge is often designed with an outward-rolled "flange" or thickened bead, improving aesthetics, feel, and edge strength.




4. Surface Finish: As required, the mould cavity can be textured (for a fine matte or patterned anti-slip surface) or polished (for a glossy finish).




4. Mould Materials & Manufacturing

• Core/Cavity Materials: Commonly use mid-to-high grade mould steels like P20, 718H, etc., offering good polishability and adequate durability.




• Mould Base: Standard mould bases are used for cost-effectiveness.




• Manufacturing Focus: Key aspects are the uniform polishing of cavities and the machining of high-efficiency cooling channels. Multi-cavity moulds demand extremely high consistency across all cavities.




5. Industry Characteristics & Trends

• Cost-Driven: Fierce market competition pushes mould design to minimise manufacturing costs while meeting core functional and lifespan requirements.




• Efficiency-First: "Multi-cavity" design and "fast cycle times" are core competitive advantages. Optimising cooling and runners is a constant pursuit.




• Functional Segmentation: Moulds are adapting to produce more specialised products, such as:

  • Laundry basins with built-in washboard textures.




  • Basins with integrated soap dishes or towel hooks.




  • Collapsible travel basins (requiring more from mould and material design).







• Material Sustainability: Considerations for compatibility with recycled plastics (PCR) are gradually influencing mould runner and venting designs.




In summary, plastic basin moulds are a quintessential example of high-volume, high-efficiency, low-cost consumer goods production. Their technical core lies not in extremely complex features, but in achieving stable, high-speed, and low-cost mass manufacturing through ingenious runner, cooling, and ejection system design. They represent a perfect blend of practicality, economy, and engineering ingenuity in injection mould design.
