Introduction to Flowerpot Moulds

Flowerpot moulds are specialised tools for the mass production of various flower pots and plant containers. Situated at the intersection of horticulture and plastics processing, their design must meet the demands of industrial production—efficiency and stability—while also addressing the functional (drainage, aeration) and decorative requirements of gardening products. Depending on the material and process, they are primarily categorised into the following major types.

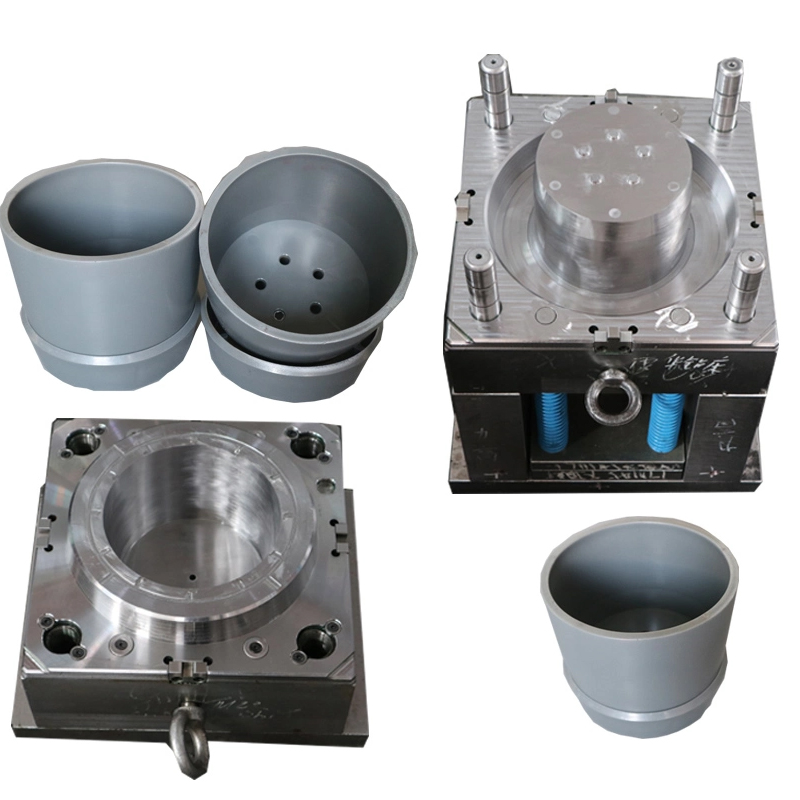

1. The Predominant Type: Plastic Flowerpot Injection Moulds

This is the most widely used and highest-volume type.

• Core Process: Injection Moulding.




• Common Materials: Polypropylene (PP) and Polyethylene (PE), favoured for their low cost, good weatherability, and toughness.




• Key Mould Design Points:

  1. Drainage Hole Formation: This is the core functional feature. Moulds use "ejector sleeves" or special ejection mechanisms to form multiple, regularly spaced drainage holes in the pot base and ensure clean ejection.




  2. Anti-Warpage Structure: Reinforcing ribs (often radial or grid-patterned) are designed into the pot bottom and sidewalls. These increase structural strength, prevent deformation, and guide plastic shrinkage to minimise surface sink marks.




  3. Ejection Optimisation: Flowerpots are classic "open-top containers" with deep-cavity characteristics. Sufficient draft angles (typically >1°) must be designed, along with a balanced ejection system (ejector pins, blocks) to ensure smooth demoulding.




  4. Surface Decoration: Through texturing (TDI) of the mould cavity, flowerpots can be mass-produced with realistic finishes like terracotta, stone, or wicker, significantly enhancing aesthetic appeal and added value.




  5. Cooling Efficiency: With thin walls and large surface areas, efficient cooling channel design is key to shortening cycle times and increasing output.







2. Other Common Types

1. Ceramic Flowerpot Moulds:

   • Process: Primarily slip casting.




   • Mould: Uses multi-part plaster moulds. The plaster's absorbent properties allow a clay slurry to form a solid layer on the cavity wall. These are consumable moulds, suitable for small-batch production of artistically complex pots.







2. Fibreglass (FRP) Flowerpot Moulds:

   • Process: Hand lay-up or spray-up.




   • Mould: Typically FRP female (or sometimes male) moulds cast from a master pattern. The surface requires high-gloss finishing and a release coating. Used for customised production of large landscape planters.







3. Cement/Concrete Flowerpot Moulds:

   • Process: Cast and vibrated forming.




   • Mould: Often steel, ABS plastic, or FRP moulds. They must be robust, easy to disassemble, and have smooth inner surfaces for easy demoulding.







3. Industry Trends for Plastic Flowerpot Moulds

• Lightweighting & Nesting Design: Optimising wall thickness and ribs and designing shapes that nest compactly significantly reduces storage and logistics costs. This places extremely high demands on mould ejection precision.




• Functional Integration: Moulds are now used to produce smart pots with integrated self-watering systems, water reservoirs, and water-level indicators, resulting in more complex internal structures.




• Sustainability: Moulds must adapt to processing bio-based plastics or high-content Post-Consumer Recycled (PCR) materials, which may require special considerations for mould wear resistance and venting.




• Quick Changeover & Flexible Production: Through modular mould design (e.g., interchangeable texture inserts), a single mould base can be quickly adapted to produce a series of pots with different finishes or sizes.




4. Core Aspects of Mould Manufacturing

For mainstream injection moulds:

• Materials: Core and cavity inserts commonly use pre-hardened mould steels (e.g., P20, 718) or high-polish stainless steels (e.g., S136) to meet the demands of texturing and long-term wear resistance.




• Machining: CNC milling for basic shapes, Electrical Discharge Machining (EDM) for fine details or deep ribs, followed by polishing or texturing. The precise fit of ejector sleeves for drainage holes is critical.




In summary, a flowerpot mould is an industrial product that integrates practical function, production efficiency, and aesthetic design. An excellent flowerpot mould can transform plastic pellets into a structurally sound, well-draining, and visually appealing container in a matter of seconds. It is the fundamental manufacturing support underpinning the prosperity of the modern horticulture industry.
